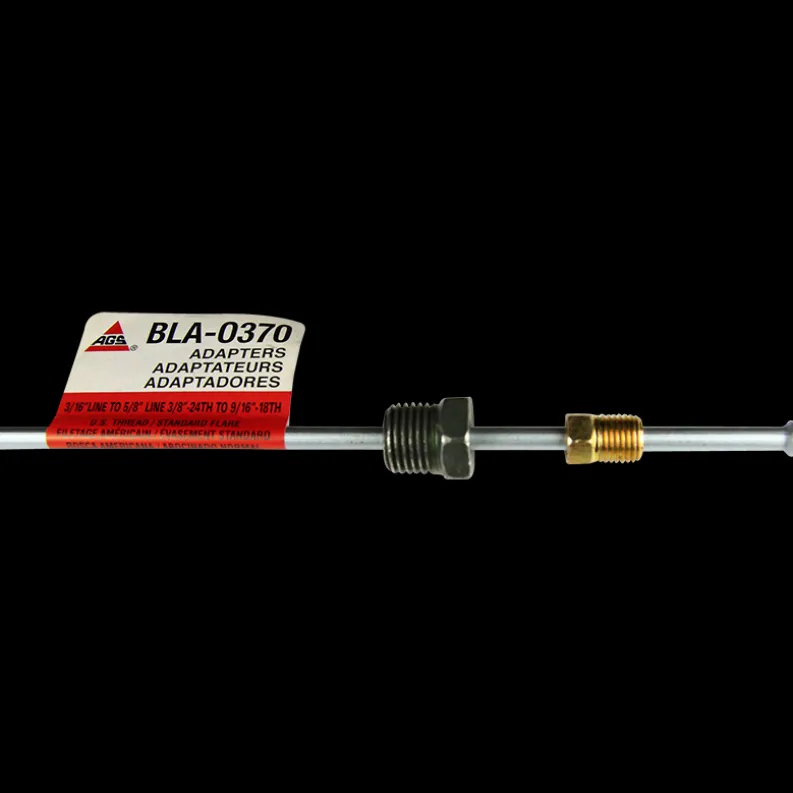

Steel Brake Line Adapter, 3/16″ x 8″ (3/8-24 Inverted)(9/16-18 Inverted)

3/16″ x 8″ Steel Brake Line Adapter

Description

Adapts 9/16-18 port to a standard 3/16″ Domestic brake system. AGS 8″ adapter brake lines allow dissimilar connections to be made within the same system. Adapter lines are available in common brake line tube sizes 3/16″, 1/4″, and 6mm. AGS offers OE matching lines. ISO/Bubble to SAE/Inverted, English thread to Metric thread, and enlarging/reducing lines. The entry-level replacement line is an excellent choice for aftermarket fluid transfer line repair and replacement. The steel lines and tubing are constructed with safety and longevity in mind. The tubing is produced by wrapping copper-coated steel around itself twice to form the tubing. This double-wall tube is what provides the strength and structural integrity to withstand the extreme pressures required, yet still remain pliable enough to be formed and bent to the shapes required to be routed beneath the vehicle. The finished tube is fused and zinc-coated to provide excellent rust and corrosion resistance as well. The Standard Steel line has been the choice of professional installers/mechanics and do-it-yourself mechanics for many years. When properly installed, the standard steel line can provide a long-lasting repair or replacement for many types of vehicles and for all types of fluid transfer systems, including braking systems. However, when a vehicle is expected to see harsh environments like snow, road treatments, salt air, etc…on a regular basis or when the longest replacement life is required; other premium lines like Poly-Armour and NiCopp should be considered. – Excellent Resistance to Rust and Corrosion – DOT Approved for Hydraulic Brake Systems – Bends and Forms without Kinking – Available in Coils of 25′ – Finished Lines Available for Domestic & Import. Standard Steel lines and tubing meet the following specifications: SAEJ527b, GM123M, SAEJ1290, DIN 74234.

Specifications

Female to Female: Yes
Fitting Finish: Zinc
Fitting Material: Steel
Male to Female: No
Male to Male: No
Thread Pitch #1: 24 in
Thread Pitch #2: 18 in
Thread Size #1: 3/8 in
Thread Size #2: 9/16 in
Thread Type #1: SAE
Thread Type #2: SAE
